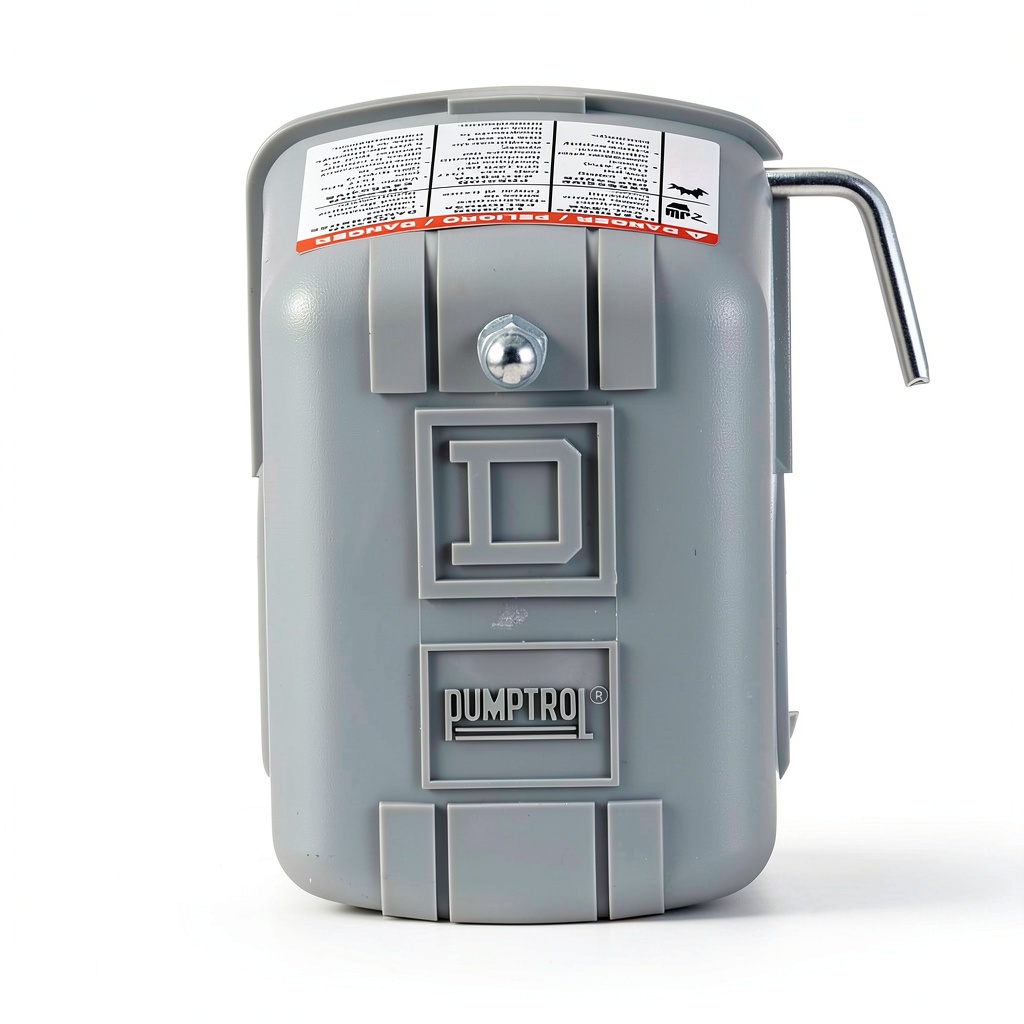

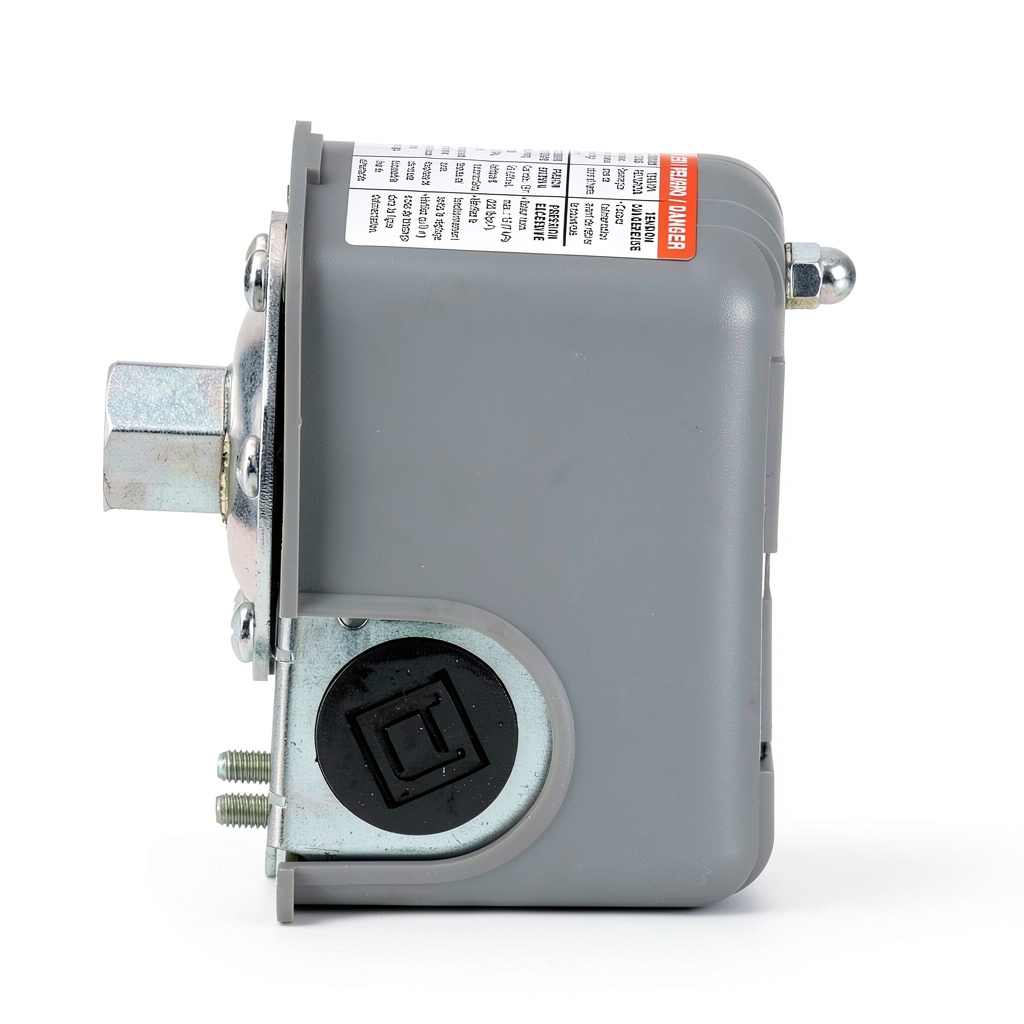

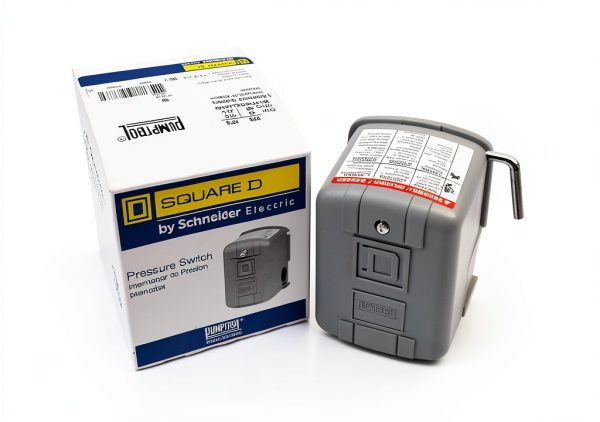

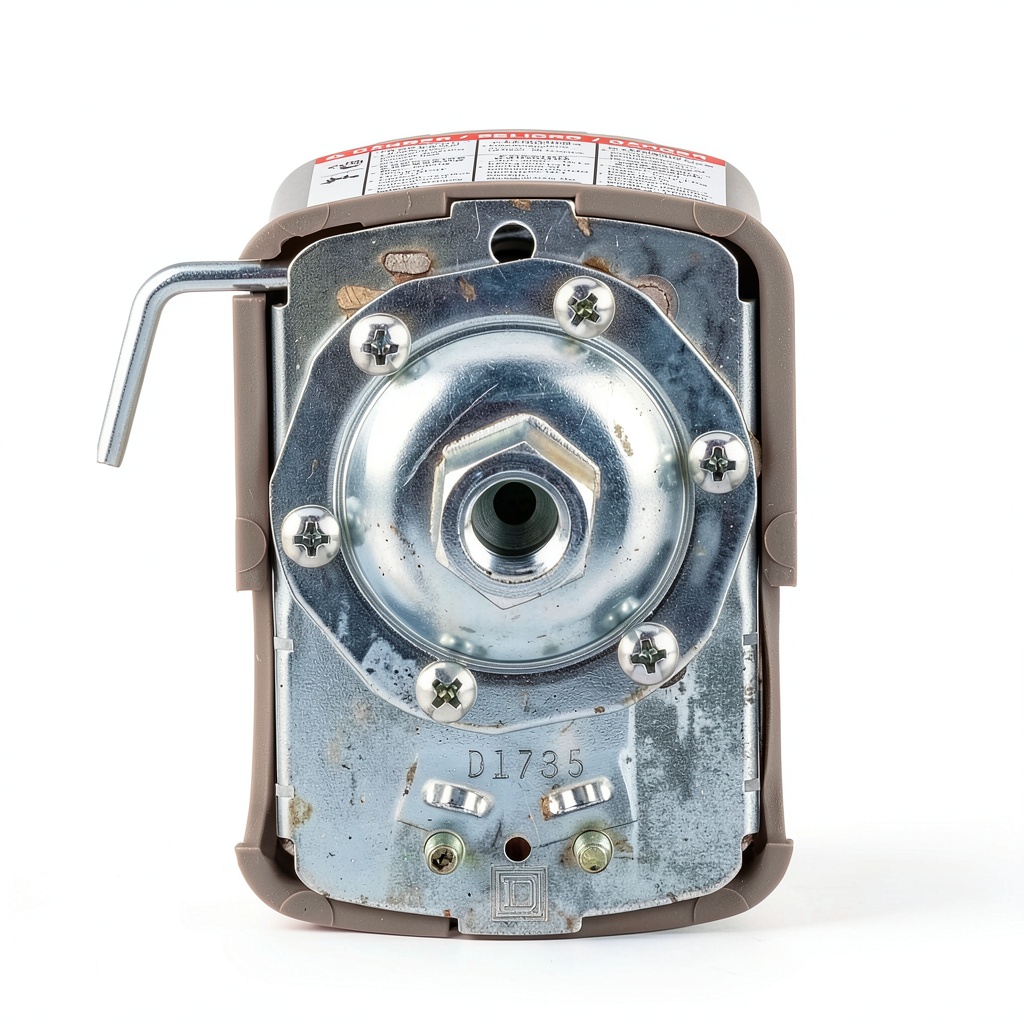

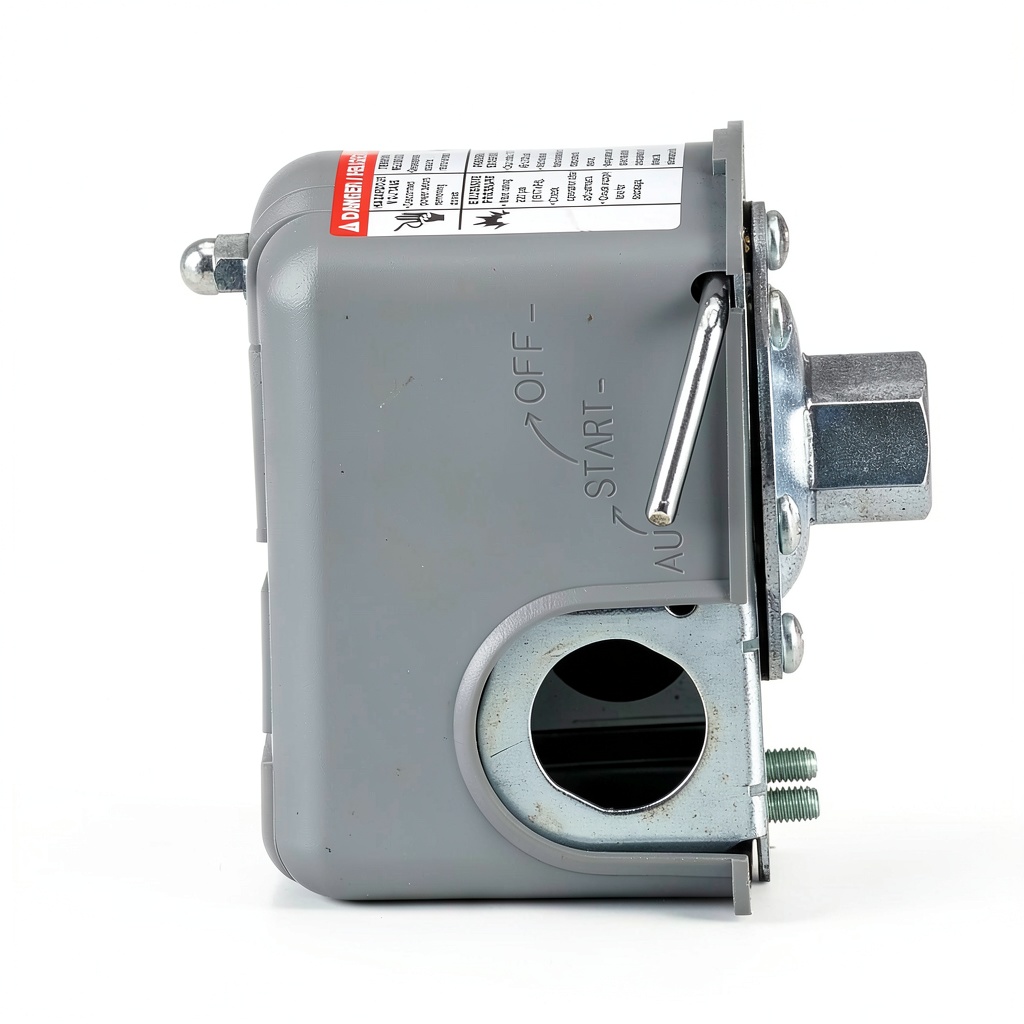

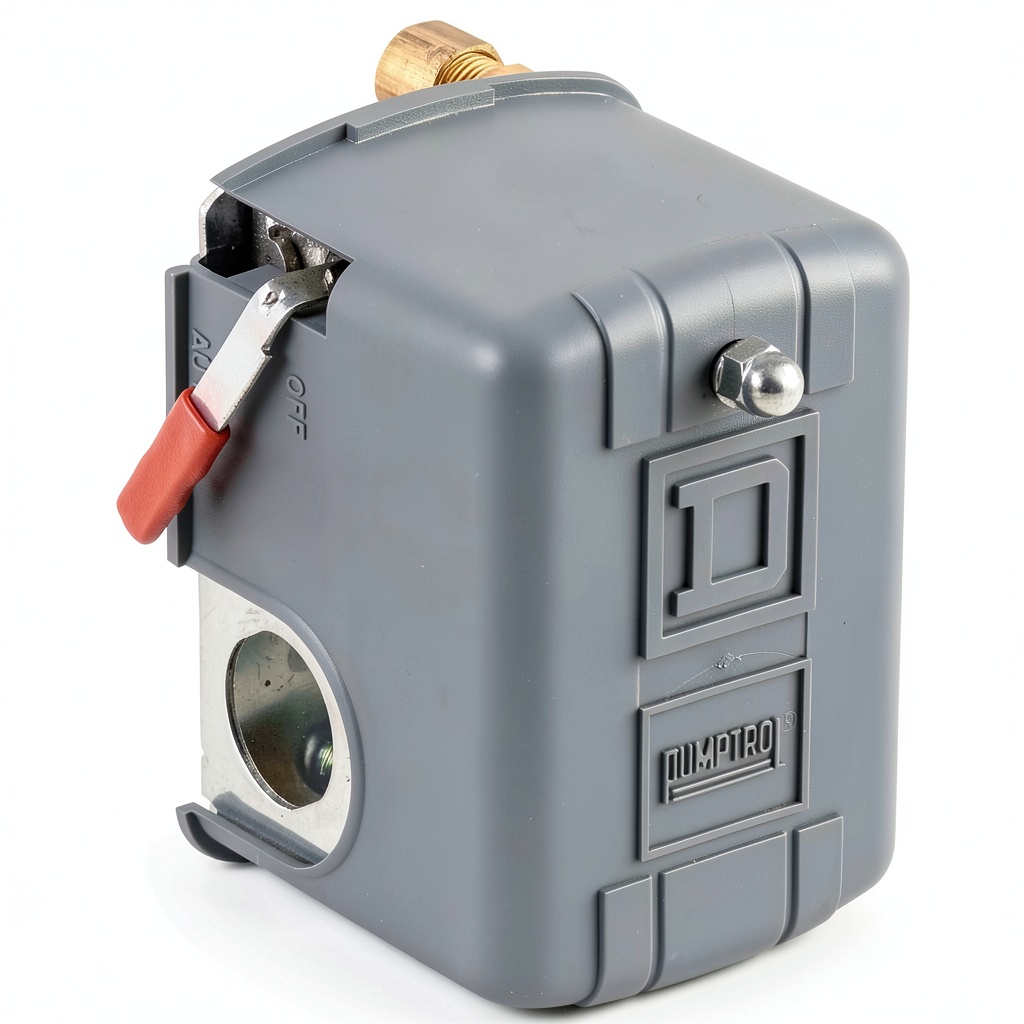

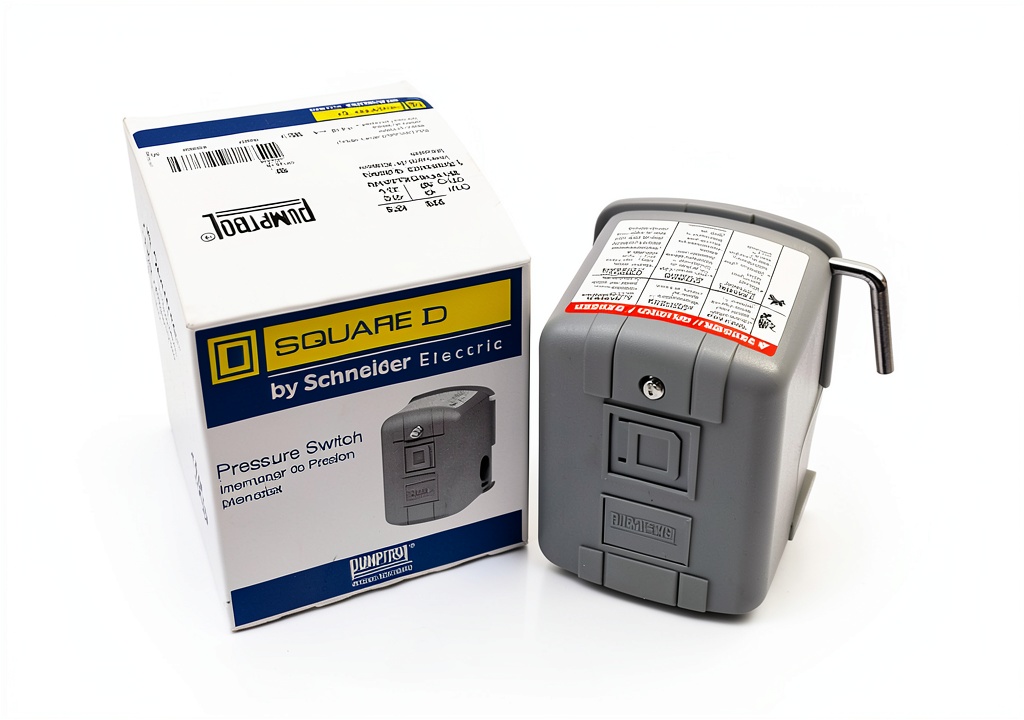

Schneider Electric Square D by Schneider Electric 9013FSG2J24M4 Air-Pump Pressure Switch, NEMA 1, 40-60 psi Pressure Setting, 20-65 psi Cut-Out, 15-30 psi Adjustable Differential, Low-Pressure Cut-Off

Description

Product Overview

The Schneider Electric Square D 9013FSG2J24M4 pressure switch is a robust, NEMA‑1 rated device designed to provide accurate pressure monitoring and control for air‑pump systems across a wide range of industrial environments. Constructed with a durable metal housing and a precision‑engineered diaphragm, the switch reliably activates at a preset cut‑in pressure of 40 psi and deactivates at a cut‑out pressure of 60 psi, ensuring consistent operation while protecting downstream equipment from over‑pressurization. The built‑in low‑pressure cut‑off feature engages approximately 10 psi below the cut‑in point, adding an extra layer of safety for sensitive machinery. Adjustable differential settings allow users to fine‑tune the pressure range between 15 psi and 30 psi, providing flexibility for applications that demand tighter control or broader tolerance.

Dimensions of the unit measure 48 × 4 × 4 inches, and despite its sizable footprint, the switch weighs only 0.01 ounces, making it easy to install in cramped panels or enclosures. The product carries the reputable Schneider Electric brand name, known for its long history of delivering high‑quality electrical components and automation solutions. Since its introduction on October 9 2012, the model has earned a solid reputation, reflected in a 4.5‑star rating from over 850 customer reviews and a best‑sellers rank of #24 in the Pressure Switches category on major e‑commerce platforms.

Usage

This pressure switch excels in environments where reliable air‑pump regulation is critical, such as manufacturing plants, HVAC systems, pneumatic tooling stations, and water‑treatment facilities. Its NEMA‑1 rating ensures protection against dust and accidental contact, making it suitable for both indoor and outdoor installations where exposure to contaminants is a concern. The switch can be integrated into automated control loops, triggering motor starters, solenoid valves, or alarm circuits when pressure thresholds are reached. Its adjustable differential makes it adaptable for processes that require precise pressure modulation, such as spray coating, foam generation, and laboratory testing rigs.

End users ranging from plant maintenance technicians to system integrators will appreciate the straightforward wiring diagram and the ability to set the pressure parameters without the need for specialized tools. The low‑pressure cut‑off function is particularly valuable in applications where sudden pressure drops could cause cavitation or damage to pumps, providing an early warning and shutdown capability that extends equipment lifespan.

Why Choose Us

Choosing the Schneider Square D pressure switch means selecting a product backed by Schneider Electric’s global network of engineering expertise, rigorous quality assurance processes, and comprehensive after‑sales support. Each unit undergoes extensive testing for durability, accuracy, and compliance with international safety standards, ensuring that the switch performs reliably even under demanding conditions. The company’s commitment to sustainability is reflected in the use of recyclable materials and energy‑efficient manufacturing practices, aligning with modern environmental expectations.

In addition to the product’s technical merits, customers benefit from Schneider Electric’s responsive technical support team, which offers installation guidance, troubleshooting assistance, and warranty services. With a track record of over a decade in the pressure‑control market, the brand’s reputation for durability and performance provides confidence that the switch will deliver consistent results throughout its service life.

Key Features

• Accurate 40‑60 psi pressure range ensures precise control for air‑pump applications.
• Low‑pressure cut‑off activates approximately 10 psi below cut‑in, protecting equipment from under‑pressure conditions.
• Adjustable differential (15‑30 psi) lets users fine‑tune performance to match specific process requirements.
• Durable metal housing with NEMA‑1 rating provides protection against dust and accidental contact.
• Backed by Schneider Electric’s global technical support and warranty for peace of mind.

FAQ

What is the recommended installation orientation for the Square D pressure switch?

The switch can be mounted in any orientation as long as the diaphragm is not subjected to mechanical stress that could impede its movement. It is advisable to install the unit in a location that allows easy access for adjustment and maintenance.

Can the pressure switch be used with liquids as well as air?

While the device is primarily designed for air‑pump applications, it can also be used with non‑corrosive liquids provided the operating pressure stays within the specified 40‑60 psi range and the fluid does not exceed the material compatibility limits of the diaphragm.

How do I adjust the differential setting?

Adjustment is performed using the built‑in screw mechanism located on the side of the unit. Turn the screw clockwise to decrease the differential and counter‑clockwise to increase it, referencing the calibration chart in the installation manual for precise settings.

What warranty does Schneider Electric offer for this pressure switch?

The product comes with a standard one‑year limited warranty covering defects in materials and workmanship. Extended warranty options are available through authorized distributors.

Is the switch compatible with existing Schneider Electric control panels?

Yes, the switch is designed to integrate seamlessly with Schneider Electric’s range of control panels and automation modules, supporting standard wiring conventions and communication protocols used across the brand’s product ecosystem.
