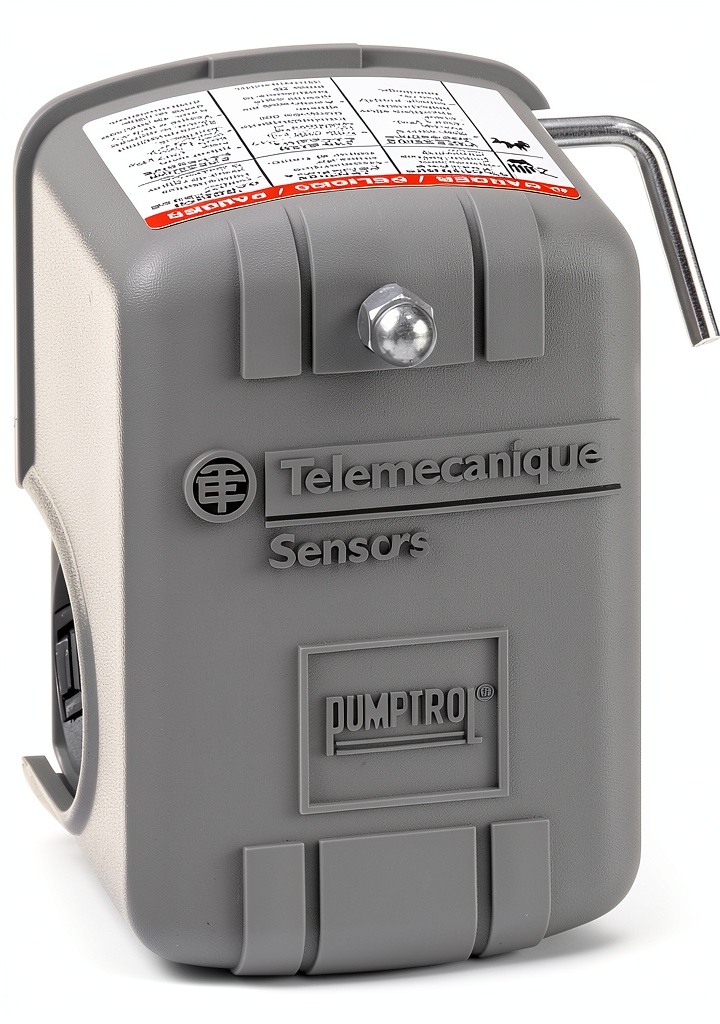

Square D Pressure Switch FSG2J21M4CP 30/50 PSI Low Pressure Cutoff

Description

Product Overview

The Square D FSG2J21M4CP is a standard pressure switch engineered for reliable operation in a wide range of water‑supply applications. Constructed from high‑impact plastic, the unit offers resistance to corrosion and mechanical wear while maintaining a lightweight profile that simplifies handling and installation. Its triangular shape and wall‑mount configuration allow the switch to be securely attached to a variety of panels, providing a clean, organized appearance in both residential and industrial settings.

Designed with a 30 psi activation point and a 50 psi shut‑off point, this switch delivers precise pressure regulation that protects pumps from cavitation and overheating. The built‑in low‑pressure cutoff feature ensures the pump restarts only when sufficient pressure has been restored, extending the life of the pump and reducing energy consumption. The internal 1/4″‑18 NPSF thread opening accommodates standard tubing, making it a versatile replacement for many existing systems.

Beyond its functional specifications, the Square D pressure switch benefits from Square D’s reputation for quality and durability. The product is backed by a manufacturer warranty, reinforcing confidence in its long‑term performance. With a compact footprint of 2.78 x 3.76 x 2.8 inches and a weight of just 14.4 ounces, the switch can be integrated into tight spaces without sacrificing accessibility for maintenance or inspection.

Compatibility is a key strength of this model. It is suitable for submersible well pumps, surface‑mounted water pumps, and any electrically driven pump that requires precise pressure control. The switch’s design also supports use in irrigation systems, pressure‑boosted water lines, and other fluid‑handling equipment where consistent pressure is critical.

Overall, the Square D FSG2J21M4CP combines robust construction, accurate pressure thresholds, and user‑friendly installation features, making it an excellent choice for professionals seeking dependable pressure management in demanding environments.

Usage

In residential well systems, the switch serves as the primary control element that starts the pump when water demand creates a pressure drop below 30 psi and stops it once the pressure reaches 50 psi. This automatic cycling reduces wear on the pump motor and prevents dry‑run conditions that can cause costly damage.

For commercial irrigation setups, the switch helps maintain consistent water pressure across multiple zones, ensuring even distribution and preventing over‑pressurization that could damage sprinklers or piping. Its wall‑mount design allows easy placement near control panels, providing clear visual access for technicians during routine checks.

Industrial applications such as cooling‑tower recirculation loops or boiler feedwater systems benefit from the switch’s reliable cutoff capability. By preventing the pump from operating under low‑pressure conditions, the device safeguards downstream equipment and contributes to overall system efficiency.

Installation is straightforward: the switch can be mounted on a vertical or horizontal surface using the provided mounting holes, and the 1/4″‑18 NPSF thread connects directly to the pump’s pressure line. Electrical wiring follows standard 120 V AC conventions, with clear labeling on the unit to guide proper polarity and grounding.

Why Choose Us

Choosing the Square D FSG2J21M4CP means selecting a product that reflects decades of engineering expertise in pressure control technology. Square D, a brand synonymous with reliability, has designed this switch to meet rigorous industry standards, ensuring consistent performance even in harsh environments.

Quality assurance is built into every manufacturing step. The plastic housing undergoes UV‑stabilization testing to resist degradation from sunlight exposure, while the internal contacts are fabricated from corrosion‑resistant alloys that maintain conductivity over thousands of cycles.

Customer support extends beyond the point of sale. Our technical assistance team is available to help with installation guidance, troubleshooting, and replacement part sourcing, providing peace of mind that your system will stay operational for years to come.

Furthermore, the switch’s low‑pressure cutoff feature reduces energy usage by preventing unnecessary pump run time, delivering cost savings that align with sustainability goals. This combination of durability, efficiency, and service makes the product a smart investment for both new installations and retrofit projects.

Key Features

• Accurate 30 psi activation and 50 psi shut‑off thresholds for precise pressure regulation.
• Durable plastic housing resists corrosion and UV exposure, extending service life.
• Wall‑mount design enables compact installation in tight spaces.
• Low‑pressure cutoff protects pumps from dry‑run and reduces energy consumption.
• Comprehensive manufacturer warranty and responsive after‑sales support for peace of mind.

FAQ

What type of pumps is this pressure switch compatible with?

The switch is designed for use with submersible well pumps, surface‑mounted water pumps, and any electrically driven pump that operates within a 30‑50 psi pressure range. It works well in residential, commercial, and industrial water‑supply systems.

How do I install the switch?

Mount the unit on a suitable wall or panel using the pre‑drilled holes, connect the 1/4″‑18 NPSF thread to the pump’s pressure line, and wire the electrical leads according to the included diagram. Detailed instructions are provided in the product manual.

Can the pressure settings be adjusted?

The factory‑set activation (30 psi) and shut‑off (50 psi) points are calibrated for most standard applications. If a different pressure range is required, a different model should be selected to ensure accurate performance.

Is the switch suitable for outdoor installation?

Yes. The plastic housing is UV‑stabilized and the unit is rated for typical outdoor conditions. However, it should be protected from direct exposure to extreme weather and installed in a location that allows easy access for maintenance.

What warranty does the product carry?

The Square D FSG2J21M4CP comes with a manufacturer warranty that covers defects in materials and workmanship. For specific warranty terms, refer to the documentation included with the product or contact our support team.
