Description
Product Overview

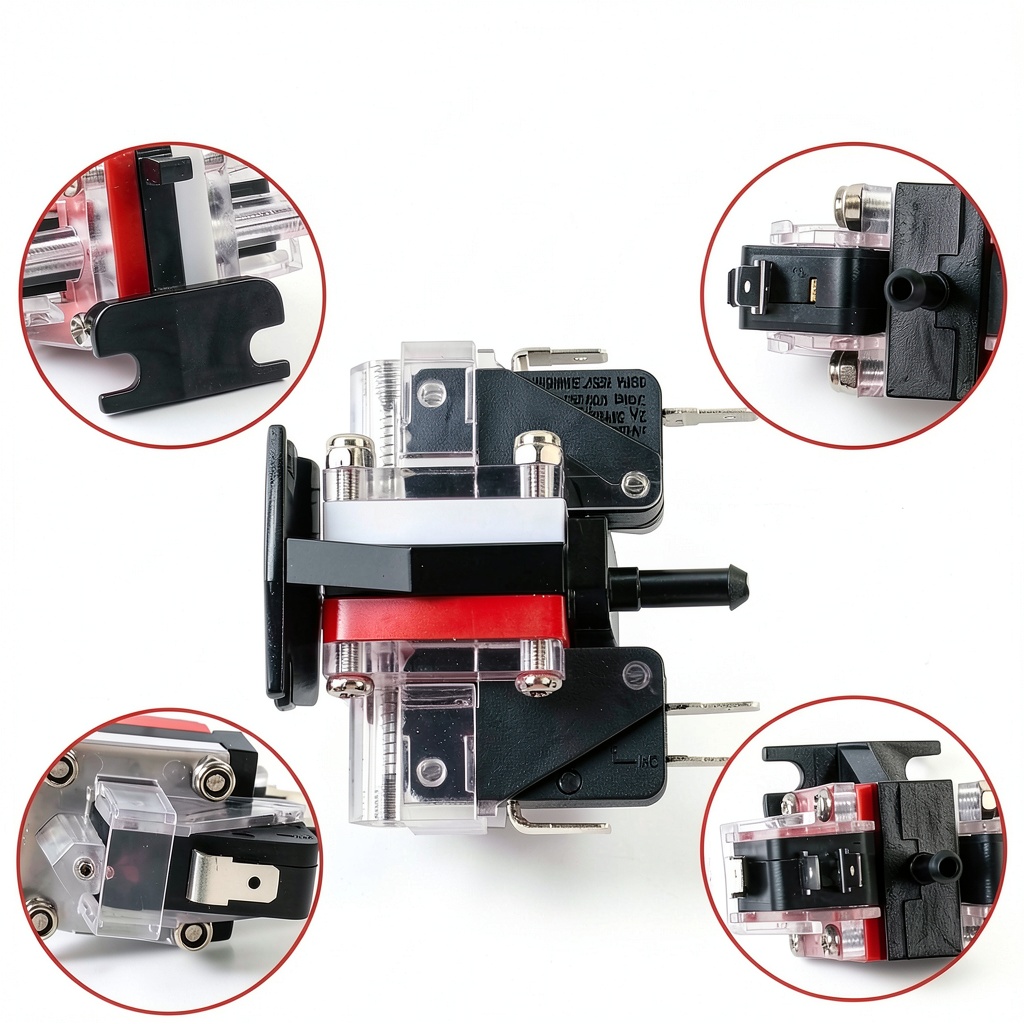

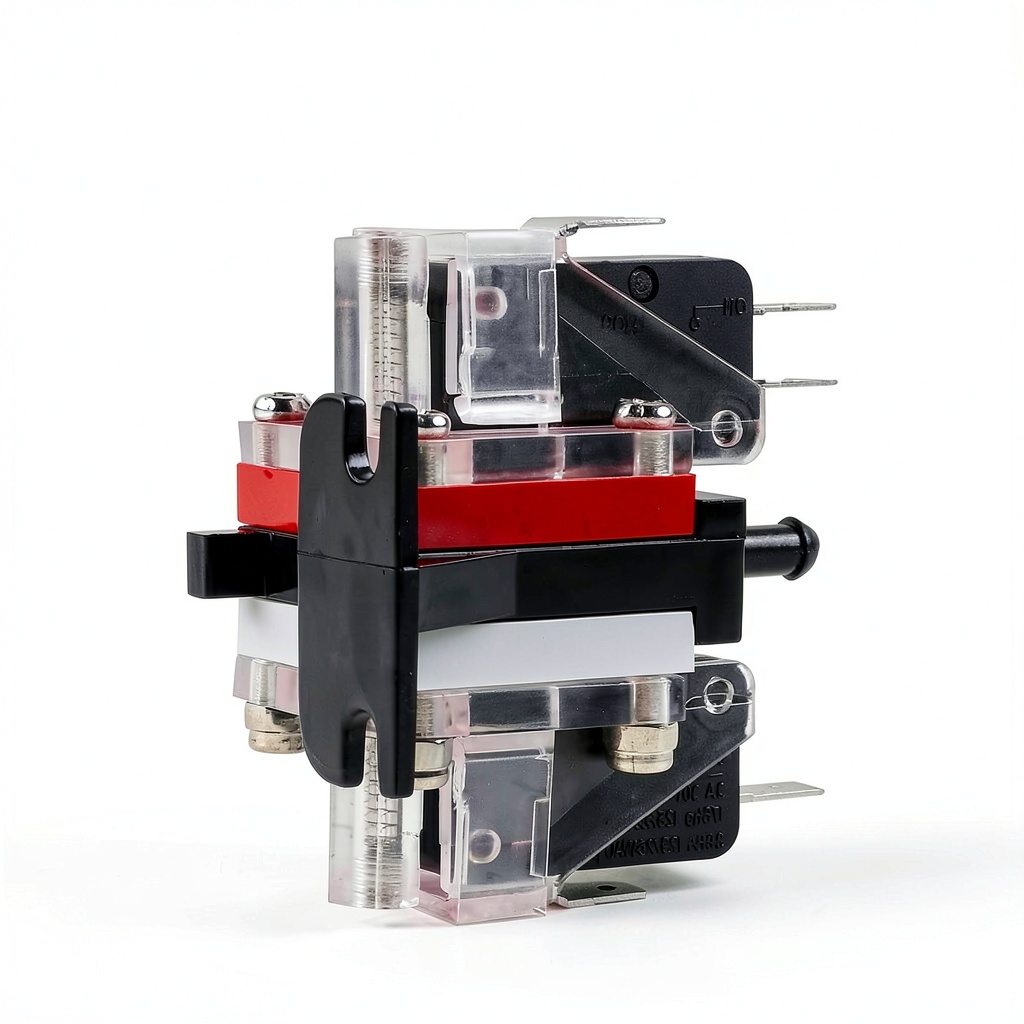

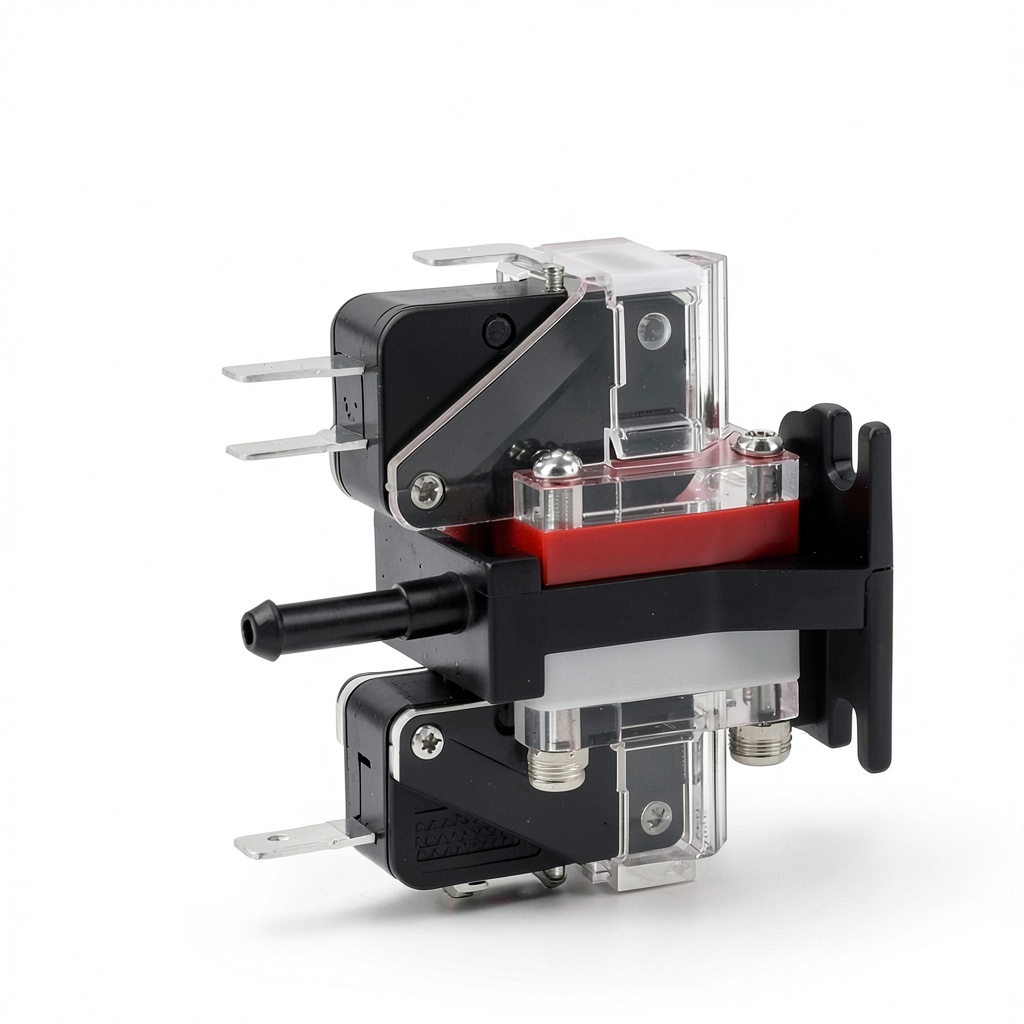

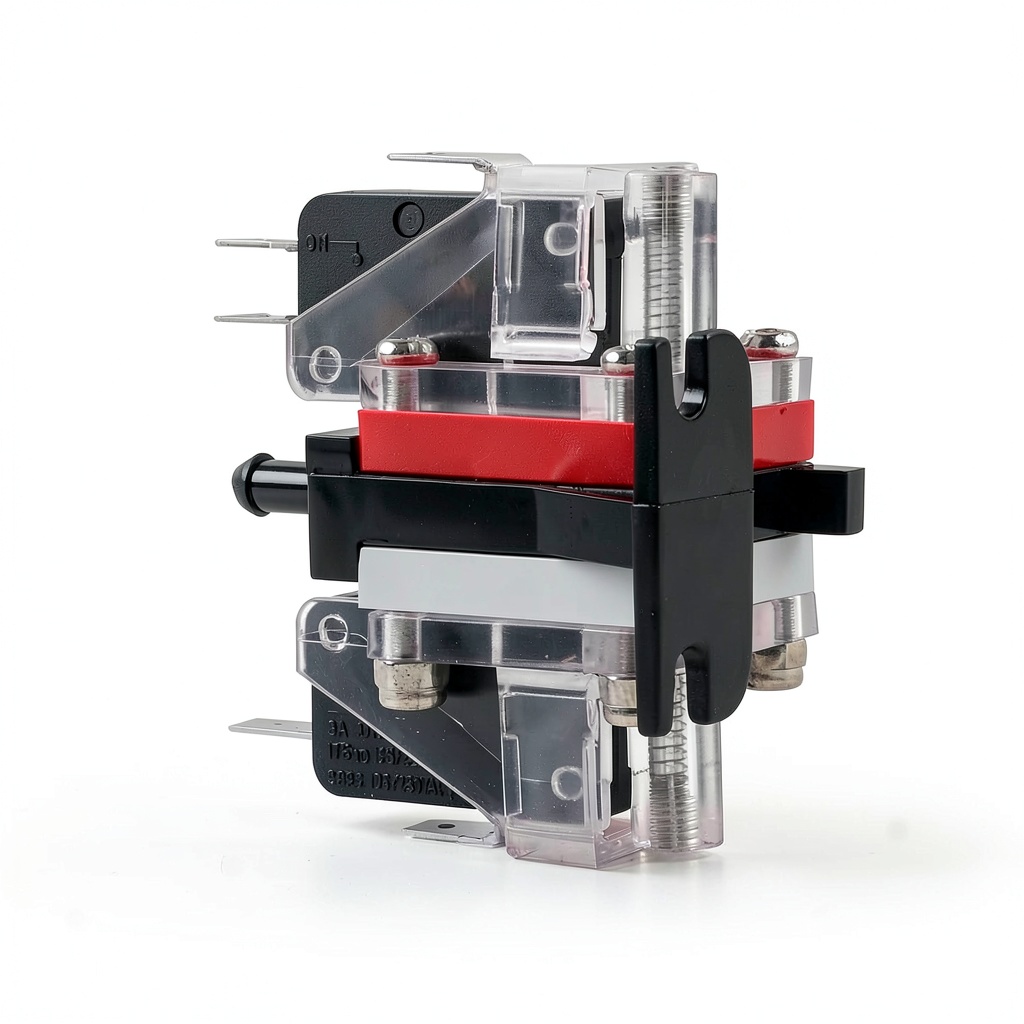

The 11-0504-01 pressure switch is a purpose‑built component designed to maintain optimal pressure levels within the refrigeration cycle of Scotsman ice makers. Manufactured by GUO SHUY, a reputable supplier of industrial control components, this switch combines precision engineering with a compact form factor measuring just 2.7 x 2.7 x 2.7 inches and weighing only 2.4 ounces. Its lightweight yet robust construction is achieved through a high‑grade polymer housing reinforced with metal contacts that resist corrosion, vibration, and temperature extremes commonly encountered in commercial ice production environments.
Key specifications include a model number of 11-0504-01, a rated pressure range suitable for most standard ice maker compressors, and an electrical rating that aligns with typical 120 V AC supply lines. The switch features a spring‑loaded diaphragm that reacts quickly to pressure fluctuations, providing a reliable on/off signal to the compressor motor. This rapid response helps prevent both over‑pressurization, which can damage seals and valves, and under‑pressurization, which can lead to inefficient cooling and increased energy consumption.
Designed for compatibility with a broad range of Scotsman models—including CU50, DCE33, NU130, SCCG30, SCCG50, SCCP30, SCCP50, and SCN60—the 11-0504-01 offers a universal fit that simplifies inventory management for service technicians. The product’s best‑seller rank of #30 in the Pressure Switches category underscores its popularity among professionals who value dependable performance and straightforward installation.
Usage
In commercial kitchens, hotels, hospitals, and other high‑volume settings where ice production is critical, the pressure switch plays a central role in safeguarding the refrigeration system. When the ice maker reaches its designed pressure threshold, the switch disengages the compressor, allowing the system to stabilize before restarting. This cyclical control not only extends the lifespan of the compressor but also ensures consistent ice quality, which is essential for food safety and customer satisfaction.
Installation is straightforward: the switch can be mounted on a standard pressure line using the provided threaded fittings, and the electrical connections are made via a simple plug‑in connector that eliminates the need for complex wiring. Because the device is engineered for quick replacement, service downtime is minimized—an important factor in environments where every minute of ice production counts.
The switch is also suitable for retrofitting older ice machines that may have outdated or worn‑out pressure control components. By upgrading to the 11-0504-01, operators can achieve modern performance standards without the expense of a full system overhaul. Its durability makes it an excellent choice for outdoor installations or facilities with fluctuating ambient temperatures, as the sealed housing protects internal components from moisture and dust ingress.
Why Choose Us
Choosing the GUO SHUY 11-0504-01 pressure switch means selecting a product backed by rigorous quality assurance processes. Each unit undergoes multiple stages of testing, including pressure calibration, electrical continuity verification, and environmental stress screening, to guarantee that it meets or exceeds industry specifications. This commitment to quality reduces the risk of premature failure and provides peace of mind for maintenance teams.
Our supply chain is optimized for rapid fulfillment, ensuring that replacement parts are available when you need them most. With a competitive price point of $46.98, the switch delivers excellent value without compromising on performance or reliability. Additionally, GUO SHUY offers comprehensive technical support, including installation guides, troubleshooting documentation, and direct access to engineering experts who can assist with complex integration scenarios.
Environmental responsibility is also a core principle of our manufacturing philosophy. The switch’s components are selected for recyclability, and the production process adheres to ISO‑14001 standards, minimizing waste and energy consumption. By choosing this product, you not only enhance the efficiency of your ice making operation but also contribute to sustainable industrial practices.
Key Features
- Precise pressure regulation that protects compressors from over‑pressure damage, extending equipment lifespan.
- Compact 2.7‑inch cubic design fits easily into tight installation spaces, reducing the need for extensive modifications.
- Rugged polymer housing with metal contacts resists corrosion, vibration, and temperature extremes for long‑term reliability.
- Universal compatibility with multiple Scotsman ice maker models, simplifying inventory and reducing part‑number confusion.
- Dedicated after‑sales support and technical assistance ensure quick resolution of any installation or performance questions.
FAQ
What pressure range does the 11-0504-01 switch operate within?
The switch is calibrated to operate within the typical pressure range of commercial ice maker refrigeration cycles, generally between 5 and 15 psi. This range covers the majority of Scotsman models, providing reliable activation and deactivation of the compressor to maintain optimal system performance.
Can the switch be installed by a technician without specialized tools?
Yes. The 11-0504-01 is designed for plug‑and‑play installation. The threaded fittings match standard pressure line sizes, and the electrical connector is a simple plug‑in type that does not require soldering or crimping. Most technicians can complete the installation in under 30 minutes, minimizing equipment downtime.
Is the switch suitable for outdoor or harsh environments?
Absolutely. The housing is constructed from a high‑grade polymer that is both UV‑stable and moisture‑resistant. Combined with sealed metal contacts, the switch can withstand exposure to dust, rain, and temperature fluctuations without degradation, making it ideal for outdoor ice machines or facilities with variable ambient conditions.
How does the switch contribute to energy efficiency?
By accurately monitoring system pressure and shutting down the compressor when the target pressure is reached, the switch prevents unnecessary motor run‑time. This precise control reduces electricity consumption and lowers operating costs, while also decreasing wear on the compressor and associated components.
What warranty and support options are available?
GUO SHUY provides a one‑year limited warranty covering manufacturing defects. In addition, customers have access to a dedicated support line, detailed installation manuals, and online resources that include troubleshooting guides and video tutorials to assist with both initial setup and ongoing maintenance.
Reviews
There are no reviews yet.
